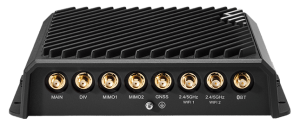

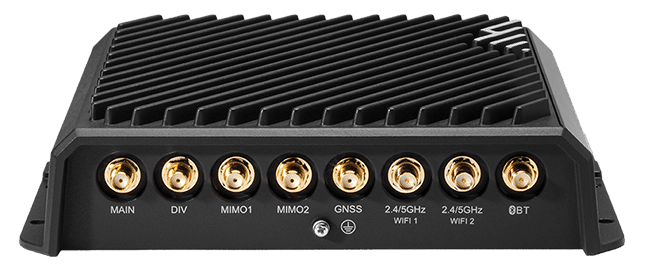

R1900 5G/Cat 20 LTE Router

The R1900 Essentials Solutions package includes the R1900 5G router and support for 1 year:

• NetCloud Software (NetCloud Manager Prime, NetCloud OS, NetCloud Perimeter)
• 24x7 Cradlepoint Support
• Limited Lifetime Warranty

Cradlepoint’s NetCloud Mobile Performance Service with the R1900 Series router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.

The R1900 mobile router includes an embedded Firstnet-ready 5G modem that can automatically connect to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 is designed to accept the RX30 managed accessories which provide either four additional GbE PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.

Features:

• Deploy the ultimate 5GNR/Cat20 LTE mobile networking solution with industry-leading features
• Internet Connections Supported: 2 embedded 5G or LTE modules (1 x 5G/Cat 20 modem included; additional MC400 can be added with RX30 accessory sold separately), 4 Wired WAN, WiFi as WAN*
• Networks Supported for Embedded Modem:
  • 5G NR: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
  • LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
• Wi-Fi Standard: 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
• Ethernet ports: 4 configurable GbE LAN/WAN
• Power Supply: Only the direct wire GPIO cable is included.  AC power supply and antennas sold separately.
• Dimensions: 6.77 x 5.82 x 1.61 in

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.
