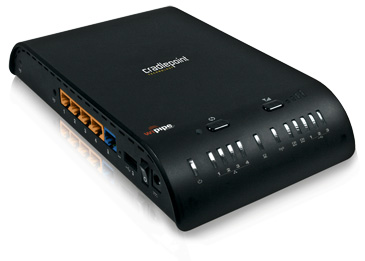

MBR1200 Failsafe Gigabit N Router for Mobile Broadband
Latest From Cradlepoint, In Stock & Now Shipping!
ALWAYS CONNECTED
The CradlePoint MBR1200 is a robust 802.11n router with 3G/4G * failover capabilities. Built for home, small business, branch offices, temporary and remote enterprise environments seeking to implement continuous, always-on connectivity.
With its failover/failback capability, the MBR1200 automatically switches to a secondary connection (either wired or wireless) when your primary service is interrupted. Once your service is restored, the MBR1200 will automatically failback to the primary connection - keeping your business online with minimal interruption to users.
VPN: SECURE AND RELIABLE
The high-performance MBR1200 has the capability to create, manage, and terminate multiple IPSec VPN sessions. It provides up to five concurrent sessions, supporting transfer and tunnel modes and several Hash and Cipher algorithms. These encryption protocols protect your communications from one private network to another from end-to-end.
ENTERPRISE POWER - SMB SIMPLE
Powered by WiPipe™ technology, the MBR1200 router includes many features found in expensive, enterprise-class routers at a fraction of the cost. With minimal setup and maintenance, including our pre-installed software, it has “right out of the box” simplicity. Standard on the MBR1200 are security features such as multiple WiFi encryption modes (WEP and WPA/WPA2 Personal and Enterprise) and built-in firewall, which prevent unauthorized use of your connection. With no additional software to load, you’ll be up and running in minutes.
SUPPORTED DEVICES:
Alltel
USB
Franklin CDU-550
Huawei EC168/C
Huawei EC228
Pantech UM175
UTStarcom UM150
(Pantech UM150)
3PC Card (PCMCIA)
Huawei EC360
AT&T
USB
2Option QuickSilver
Sierra Wireless 881U
Sierra Wireless 875U
USBConnect 881
USBConnect Mercury
ZTE MF636
ExpressCard
2Option GT Max 3.6 Express
2Option GT Ultra Express
Phones
4Blackberry 8310 (Curve)
4Blackberry 9000 (Bold)
HP iPaq 910
Motorola RAZR v3xx
Motorola Q v9h
Samsung Blackjack
Samsung SGH-A707
B-Mobile (Japan)
USB
ZTE MF626
Clear 4G
When using the Clear WiMAX network, the following Modem Firmware must be loaded onto the CradlePoint Router.
Clear Modem Firmware 4.1.46503
USB
Clear USB Modem
Cricket
USB
Calcomp a600
UTStarcomm UM100
E-Mobile (Japan)
USB
D02HW
D11LC
D12LC
D21HW
D21LC
D22HW
nTelos
USB
Franklin CDU-680
ExpressCard
Kyocera KPC680
NTT Docomo (Japan)
USB
LG L-02A
Pioneer Cellular
USB
Franklin CDU-680
Sierra Wireless USB 598
ExpressCard
Sierra Wireless Aircard 402
Rogers (Canada)
USB
Novatel MC950D
ZTE MF636 (Rocket Stick)
ExpressCard
Novatel X950D
Softbank (Japan)
USB
Softbank C01LC
Generic UMTS/GSM Devices
These devices were tested using the AT&T network in the United States and may or may not work with other UMTS/GSM carriers internationally.
USB
Huawei E220
Huawei E160E - Orange Branded
Novatel MC930D
Novatel MC950D
Sierra Wireless 880U
Sierra Wireless 885U
(Compass 885)
ZTE MF626
ExpressCard
Sierra Wireless 880E
Huawei E870
Huawei E870 - Orange Branded
Generic CDMA Devices
These devices were tested on CDMA networks that have approved these devices for use around the world and may or may not work with carriers that have approved them for use on their networks. For specific information, please the carrier you are looking for usage approval of these devices on their network.
USB
Huawei EC168C
Sierra Wireless USB 598
ExpressCard
Sierra Wireless Aircard 402
Sprint
When using the Sprint WiMAX network, the following Modem Firmware must be loaded onto the CradlePoint Router
Sprint Modem Firmware 4.1.645
USB 4G/3G
Franklin U300
USB 3G
Franklin CDU-680
Novatel MiFi 2200
Novatel U720
Novatel U727
Novatel U760
Sierra Wireless 595U
Sierra Wireless Compass 597U
Sierra Wireless Compass 598U
ExpressCard
Novatel EX720
Novatel C777
Sierra Wireless Aircard 402
Sierra Wireless 597E
3PC Card (PCMCIA)
Novatel S720
Pantech PX-500
Sierra Wireless Aircard 595
Phones
4Blackberry 8703e
4Blackberry 8130
4Blackberry 8330
4Blackberry 8830
1HTC Touch
1HTC Mogul (6800)
1HTC Apache (6700)
LG Fusic LX-500
LG Muziq
Motorola KRZR
Motorola RAZR V3c
Motorola RAZR2
Motorola Q
Motorola Q9c
Palm Centro
Palm 700w
Palm 755p
Samsung A900
Samsung A900M
Samsung A920
Samsung ACE
Samsung i830
Samsung SPH-m520
Sanyo SCP-8400
Sanyo Katana
Sanyo Katana 2
Sanyo M1
Telus (Canada)
USB
Sierra Wireless 595U
ExpressCard
Sierra Wireless 597E
T-Mobile
USB
Huawei UMG-181
Verizon
USB
Novatel MiFi 2200
Novatel USB720
Novatel USB727
Novatel USB760
Sierra Wireless 595U
UTStarcom UM150
(Pantech UM150)
UTStarcom UM175
ExpressCard
Kyocera KPC680
Novatel PC770
Novatel V740
3PC Card (PCMCIA)
Sierra Wireless Aircard 595
Verizon PC5750
Phones
4Blackberry 8703e
4Blackberry 8130
4Blackberry 8330
4Blackberry 8830
4Blackberry 9530 (Storm)
LG VX7200
LG VX8000
LG VX8300
Motorola RAZR V3c
Palm 700p
Palm 700w
Verizon XV6800
1- The user experience with devices running Windows Mobile is less robust than other phones and modems. Windows Mobile devices connected to either a PC or a CradlePoint router have exhibited erratic behavior while using data sharing capabilities. Issues include frequent disconnects for no apparent reason and remedies entail frequent rebooting the phone and or removing the phone's battery. This problem is not something that can be resolved by CradlePoint Technology and will need to be addressed by the phone manufacturer. Please refer to our release notes.
2 - These modems can take up to 2.5 minutes to make a data connection. In our tests, they appear to spend a long time attempting to get a signal before they can make a data connection. The Ultra seems to connect more quickly in our tests. Note that the the Ultra Express' performance in the router is not as good as in the PC. This modem works with the router, but if you have a choice any of the other GSM modems such as the Novatel or Sierra Wireless are more compatible.
3 - ExpressCard to PCMCIA adapters are not supported. For ExpressCard modems, use the ExpressCard slot. - Blackberry Devices running the 5.0 Version of Blackberry Operating System are known to have problems connecting to CradlePoint routers. It is recommended that users wanting to connect or “tether” to a CradlePoint router with their Blackberry device use the 4.x or earlier Blackberry Operating Systems.”
4 - Blackberry Devices running the 5.0 Version of Blackberry Operating System are known to have problems connecting to CradlePoint routers. It is recommended that users wanting to connect or “tether” to a CradlePoint router with their Blackberry device use the 4.x or earlier Blackberry Operating Systems.
SPECIFICATIONS
MODEL #: MBR1200
WiFi Standards: IEEE 802.11 b/g/n (draft), internal WiFi antennas (300+ yards range), external antenna ports for optional antennas providing additional distance and performance.
Network Connections: Four (4) 10/100/1000 LAN/WAN Configurable Ports, One (1) 10/100/1000 WAN (Ethernet), Three (3) USB 2.0 Modem Ports, One (1) ExpressCard Modem Slot, One (1) PC Card Slot
Buttons / Switches: WiFi On/Off Switch; WPS Button (WiFi Security), Modem Signal Strength, Reset, and Power Switch
LED Indicators: Power, LAN/WAN 1-4, 1G WAN (Wired Network), WLAN (Cellular Network), WPS (WiFi Protected Setup), ExpressCard Modem, PC Card Modem, USB Status 1-3, Signal Strength
Dimensions: 9” x 5.1” x 1.57” ( 230mm x 130mm x 40mm )
Certifications: FCC, IC, CE, WiFi Alliance
Operating Temperature: 0oC to 50oC
IN THE BOX
MBR1200 Failsafe Gigabit Broadband N Router, Power Adapter (12V, 1.5A), CAT5 Ethernet Cable (5ft), Mounting Hardware, Quick Start Guide, Accessory Guide
MINIMUM REQUIREMENTS
Mobile Broadband USB, ExpressCard or PC Card Data Modem with Active Subscription or Supported Phone with Active Tethered (Phone-As-Modem) Data plan
Windows 2000 / XP / Vista, Mac 0SX, or Linux Computer with WiFi Adapter ( 802.11 b/g/n Recommended )
Firefox 2.0, Internet Explorer v6.0, or Safari 1.0 Internet Browser
DETAILS
2.412 to 2.484 GHz Frequency Band Operation
Compliant with IEEE 802.3 and 3u Standards
Supports OFDM and CCK Modulation
Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, or L2TP Connection Types
Traffic Control and Virtual Server (max 32 servers) and DMZ
Compatible with HSPA, EVDO, & WiMAX Cellular Network Devices
Easy Management via HTTP and Remote Management via HTTP and SNMP
Full Integration with WiPipe™ Manager (Optional Managed Services from CradlePoint)
VPN INFORMATION
Create, Manage, and Terminate Up To 5 IPSec VPN Sessions
Supported VPN Implementations:
MBR1x00 to MBR1x00, MBR1x00 to Cisco/Linksys Routers 1, MBR1x00 to Linux Systems 2
Tunnel (default) and Transfer (a.k.a. Transport) Modes
Hash Algorithms (hardware accelerated) - MD5, SHA128, SHA256, SHA384, SHA512
Cipher Algorithms (hardware accelerated) - AES, 3DES, DES
Keying - automatic using IKE 1.0 or Manual
Authentication Method: Pre-Shared Key 3
1 Tested against a Cisco 5500 running IKE Microcode: CNlite-MC-IPSEC-Admin-3.03 IPSec Microcode: CNlite-MC-IPSECm-MAIN-2.03
2 Tested with Linux Kernel: 2.6.18 - 2.6.25; IKE (Racoon): 0.7.0 and 0.7.1
3 No Stream Compression, LT2TP or PPTP Support
SECURITY
Optional Modem Security Cap ensures your modems stay where you put them.
Firewall features Network Address Translation (NAT) and Stateful Packet Inspection (SPI) which prevents against DoS attacks.
Access Control available in encrypted and open modes, as well as password protected Internet Access to prevent unauthorized usage.
Provides additional security of Enable/Disable SSID and Internet Access Control (Services, URL, and MAC Filtering)
Supports multiple concurrent IPSec, L2TP, and PPTP VPN Pass-Through Sessions
Supports 64/128-bit WEP, WPA, WPA2 (Personal & Enterprise) Wireless Security Modes
Optional Accessories:
See here for the Security Housing which covers the modem array on the MBR1200. Ideal for buses, trains, or any semi-public area where vandalism or theft is of concern.
External WiFi Antennas will significantly extend your range on the MBR1200 router.
*Mail in offer details: Featured PHS300 is Hardware version 1 and WILL NOT support 4G modems. Simply complete and mail in the included rebate form and all necessary documentation by 4/1/10. Your FREE PHS300 ships directly from Cradlepoint, allow 6-10 weeks for processing. Limited to US residents only.
